Technical information

Light industrial scissor lifts

  • up to 2 tons lifting capacity
  • up to 2 m lift travel

Lift tables for more challenging tasks and for plant engineering, with middle to high switch frequency. This product series combines the advantages of the light steel construction of the handling scissor lifts with the reliability of the heavy duty scissor lifts.

  • Solid welded construction

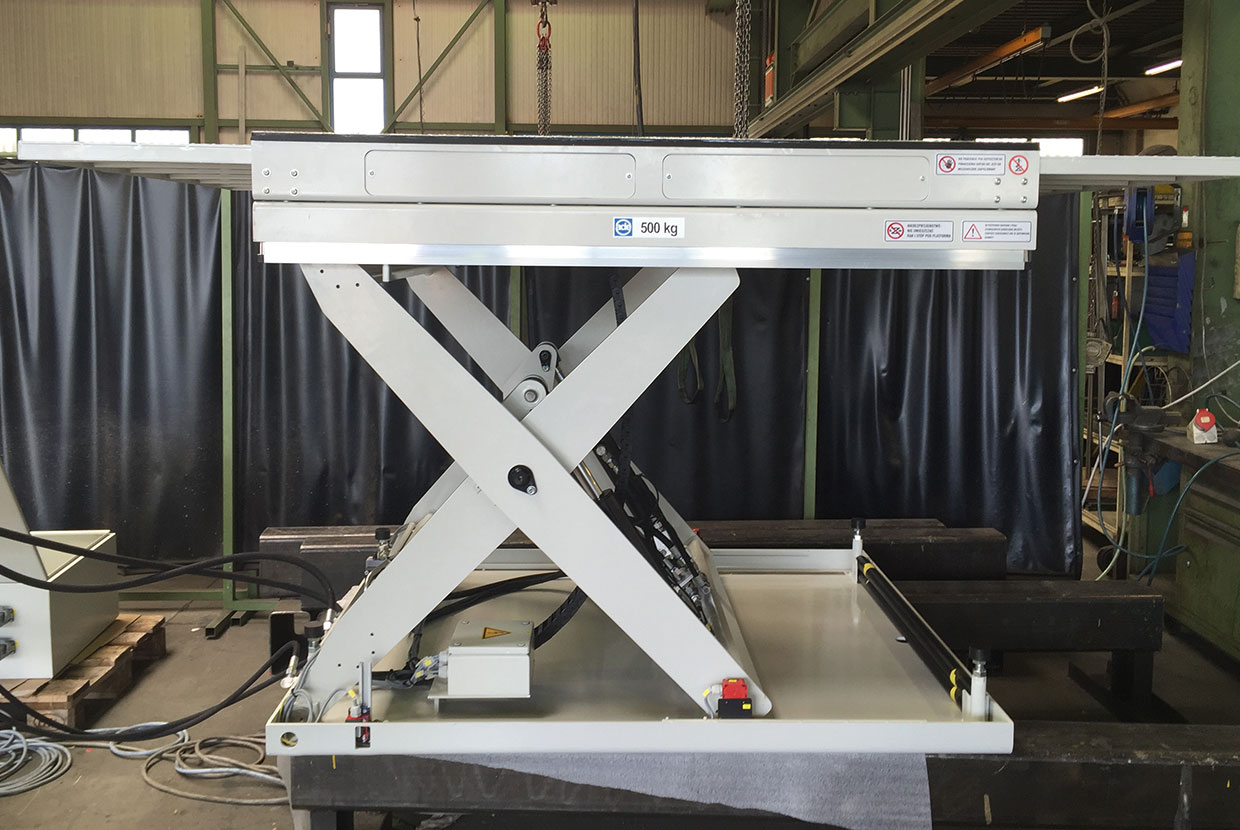

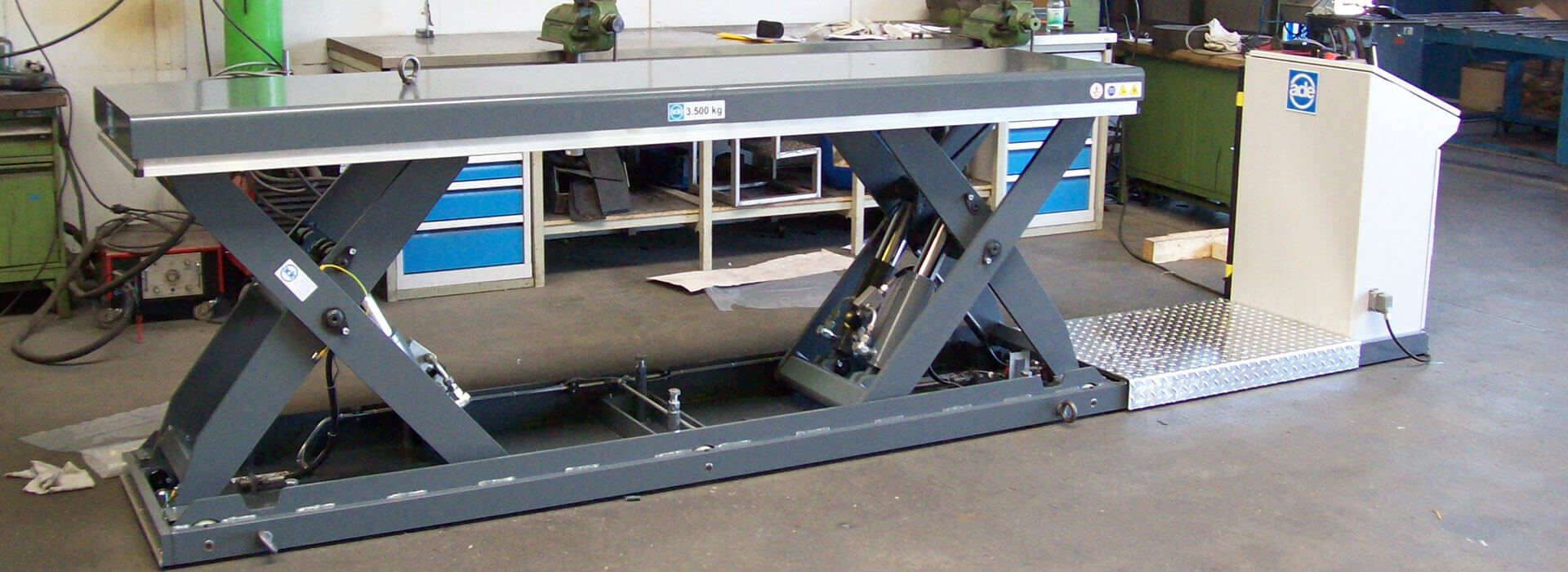

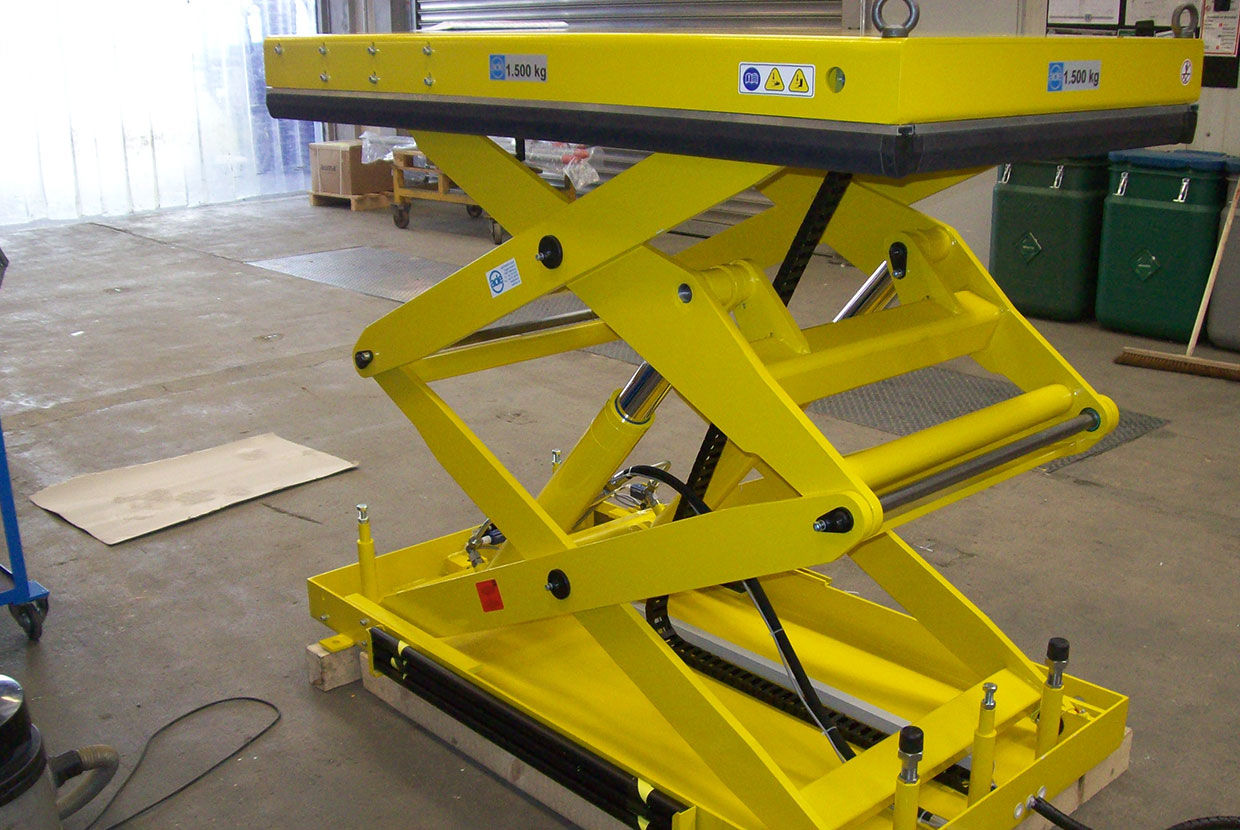

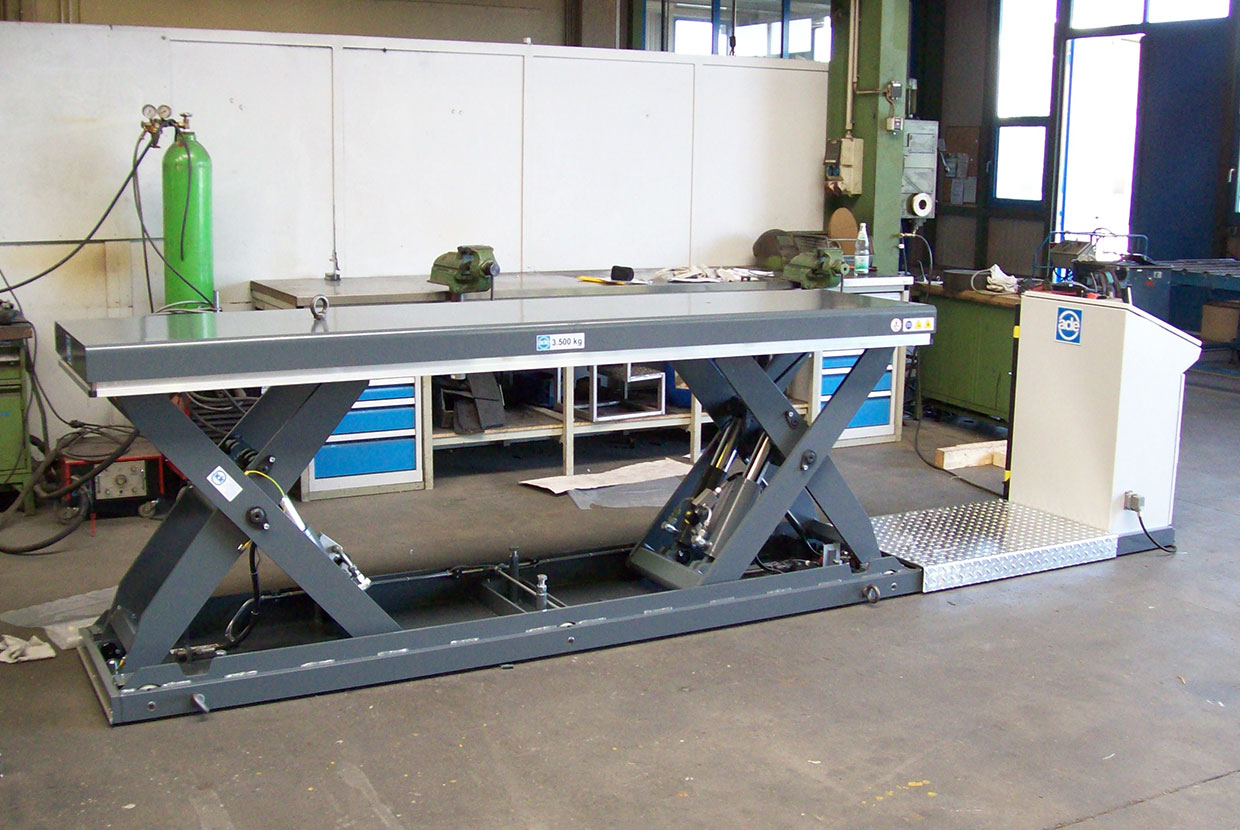

  • Design as single scissors, double vertical scissors and double horizontal scissors.
  • The scissors are made of full material, bottom and top frames are realised as stable tub construction.
  • Adjustable mechanical fixed stops, to adjust the height of the lift table.
  • High quality hydraulic plunger actuator.
  • Hydraulic aggregate realised as electrical hydraulic compact aggregate or as heavy duty power pack,
    constructed according to cycle times.
  • Installation option floor-mounted or pit installation
  • Maintenance work in a secure environment are guaranteed by mounted maintenance supports
  • Automatic security: Blocking the lowering movement by burst pipe(s) (EN-1570)
  • Upon request, ALU foot protection contact edge safety-bar, all sides
  • Platform covering made of robust sheeting
  • Conservation / lacquering
    all steel components cleaned
    Two component polyurethane top-coat
    - Standard colour hue of scissor system RAL 2003 (pastel orange)
    - Standard colour hue of base and upper frame RAL 5015 (sky blue)
  • All bearing points are lubricated for life. The centre scissors bearing as well as the fixed bearing
    carried out with maintenance-free spherical plain bearings, the roller with maintenance-free grooved
    ball bearing.
  • Hanging possibility in centre of gravity for transportation by crane
