Technical information

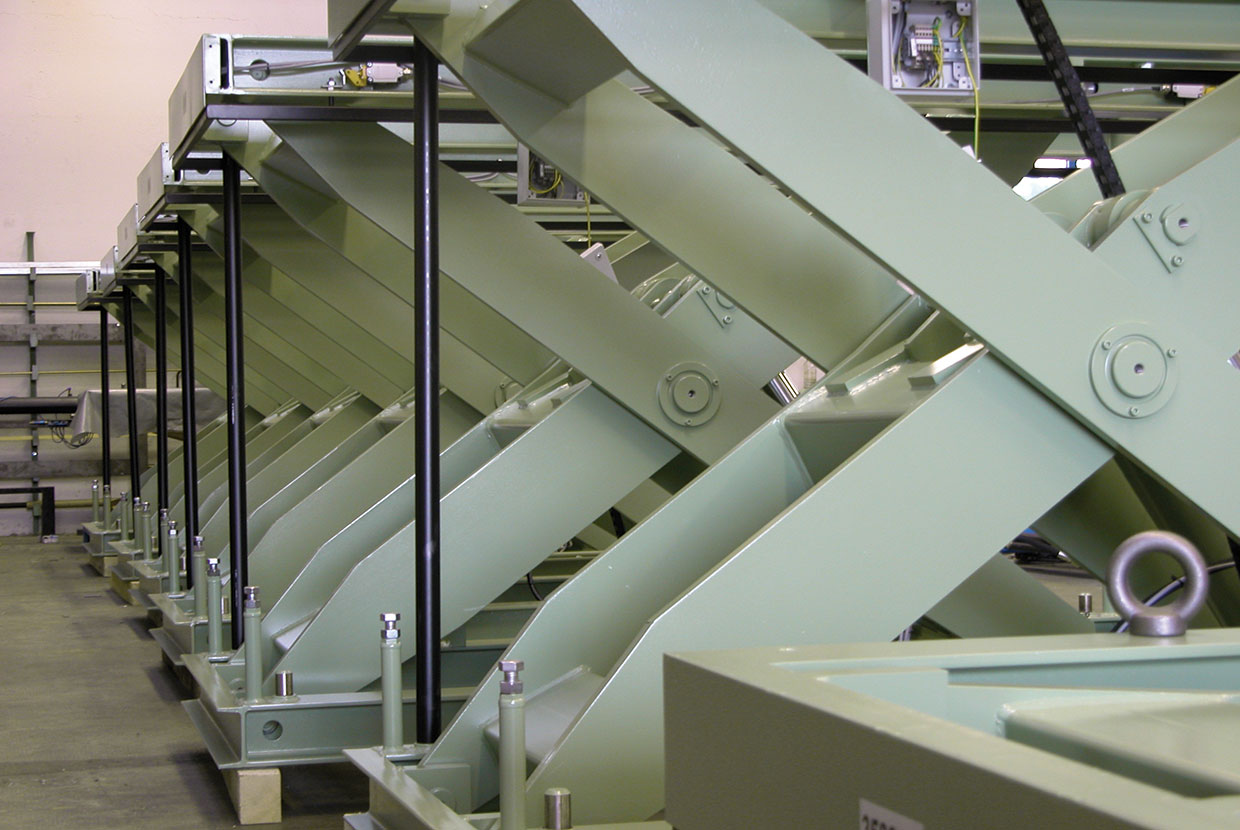

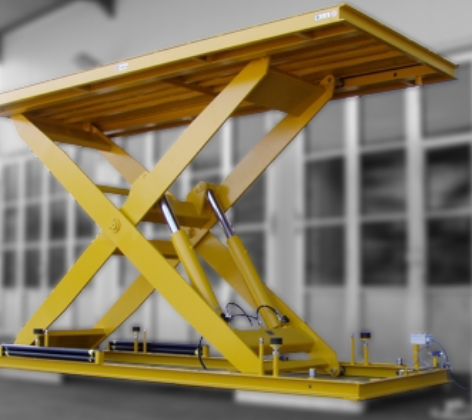

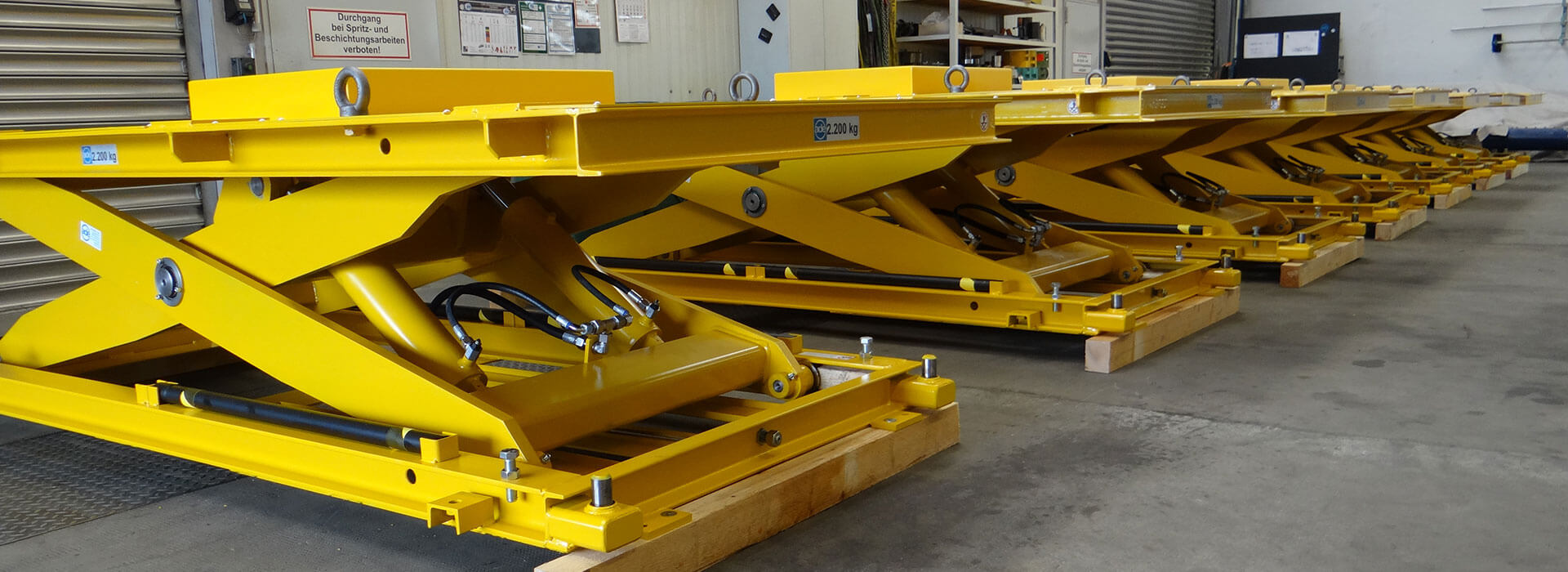

Heavy-duty scissor lifts

  • up to 100 tons lifting capacity
  • up to 8 m lift travel

Lift tables for more challenging tasks, extreme operations, harsh continuous operation and for the heavy plant engineering, with high switch frequency This product series is adjusted customer-specific exactly to the operation case and optimised. In this way, the greatest possible reliability, the greatest possible lifespan as well as the highest stability are achieved.

  • Solid welded construction
  • Design as single scissors, double vertical scissors ans double horizontal scissors.
  • The scissors are made of full material.
  • The lower and upper frames are executed as rigid welded construction (IPB Profile).
  • Adjustable supports, to adjust the height of the lift table.
  • Installation option floor-mounted or pit installation
  • Maintenance work in a secure environment are guaranteed by mounted maintenance supports
  • Upon request, ALU foot protection contact edge safety-bar, all sides
  • Platform covering made of robust flat plate
  • Conservation / lacquering
    all steel components cleaned
    - Two component polyurethane top-coat
    - Standard colour hue RAL 1004 (yellow gold)
  • All bearing points are lubricated for life. The centre scissors bearing as well as the fixed bearing
    carried out with maintenance-free spherical plain bearings, the roller with maintenance-free grooved
    ball bearing.
  • Hanging possibility in centre of gravity for transportation by crane
