Construction types

Construction types

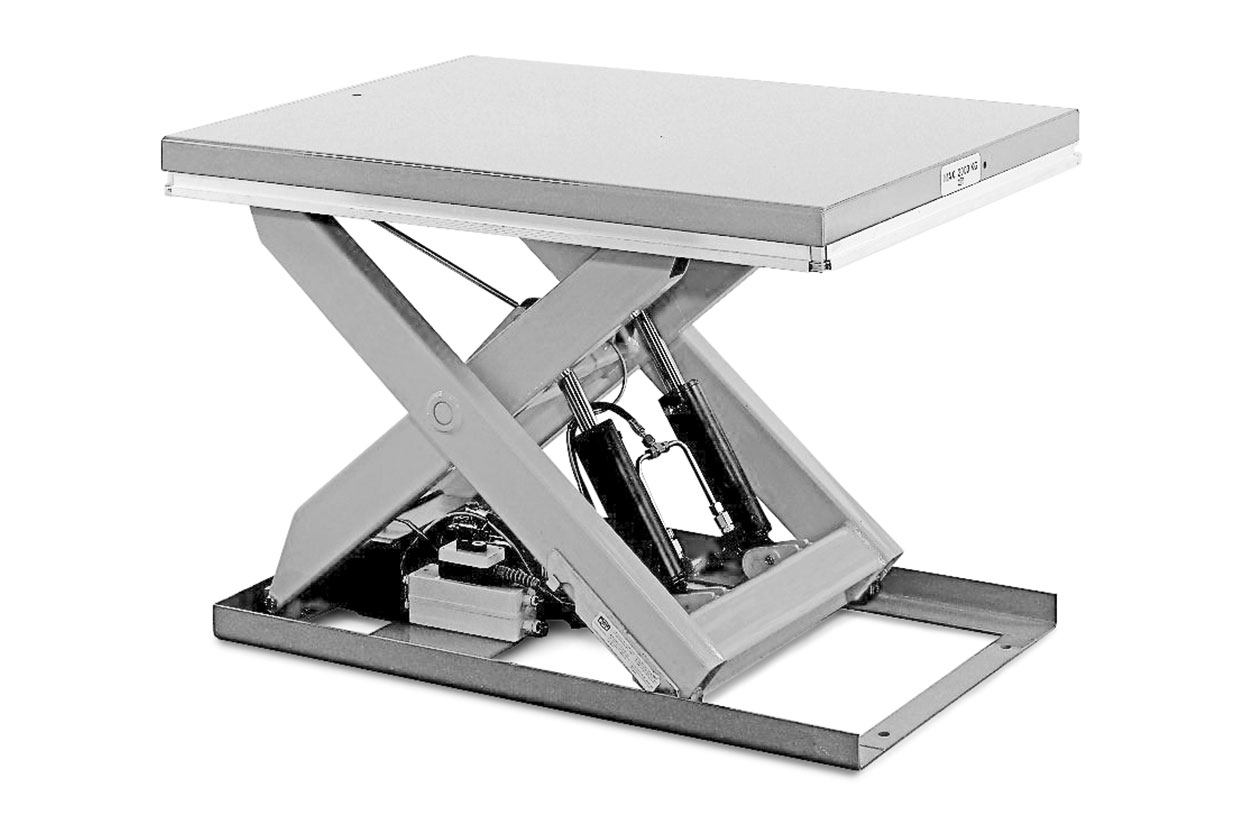

Single scissor lift

Stiff lifting system with optimised scissors kinematics Cases of application are from assembly stations for adjustment of the ergonomical working height to stacking applications to load and unload trucks.

Standard dimensions

Double horizontal scissors

This design is applicable where high loads have to be lifted, where big platforms are required and where the closed height is restriced.

Standard dimensions

Double vertical scissors

This model is always used where great height differences must be overcome but the installation room is limited.

Standard dimensions

Threefold vertical scissors

This model is always used where great height differences must be overcome but the installation room is limited.

Standard dimensions

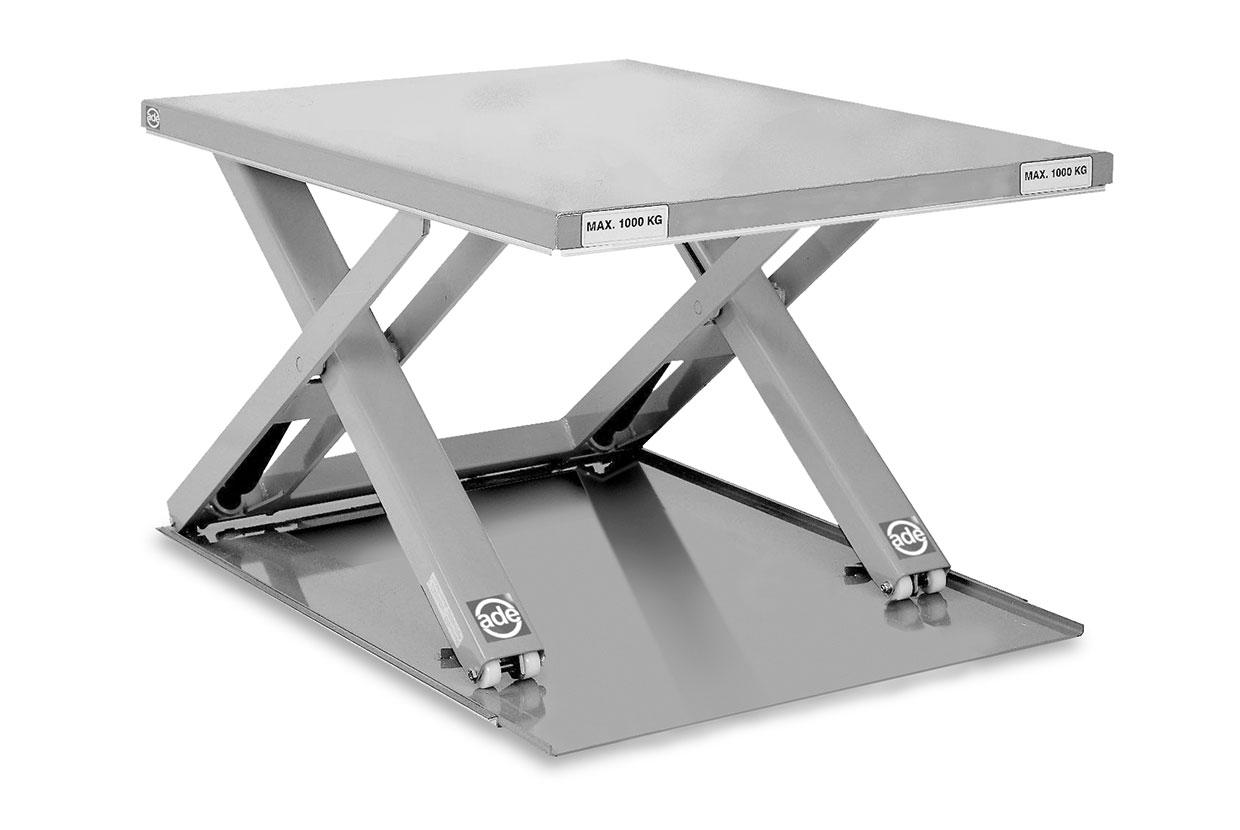

Low profile scissor lift

A pit for installation is not required, due to the minimal closed-height.

Standard dimensions

Low profile scissor lift in u-shape

These lifters are designed to be loaded by means of a pallet truck. Due to the extra-low design and the cut-out in the upper frame the load can be set directly onto the platform.

Standard dimensions
